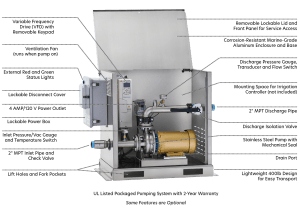

• UL Listed packaged pump station
• 100kA SCCR Rating
• Energy efficient Variable Frequency Drive (VFD) maintains constant pressure at varying flow demand
• Starting Options:
– Pressure drop
– 24 VAC remote start relay
– Flow based (Booster)
• Surge-free starting allows for slow pipe fill at pump start up
• HOA switch for manual and automatic operation
• Manual pump speed control dial
• External green system run indicator light
• External red system fault indicator light
• Pump thermal protection sensor
• Stainless steel flow switch
• Stainless steel pressure transducer
• Marine grade aluminum station enclosure and base
• Pad-lockable station and power enclosure
• System fault protection alerts:
-VFD fault shutdown
-High pump temperature shutdown
-Motor overload shutdown
-Transducer failure shutdown
-Low pressure shut down and pipe break protection
-High pressure shutdown
-Phase loss (3 phase only)
-Loss of prime
-Pump deadhead shutdown
• UL Type 3R, UL508A listed composite power enclosure with 60 AMP fused disconnect
• 120 VAC/4 AMP power outlet
• Stainless steel Horizontal Centrifugal Pump (Booster)/Self-Priming Horizontal Centrifugal Pump (Suction Lift) both with mechanical seal
• Horizontal premium efficient TEFC motor
• Station enclosure ventilation fan
• Station inlet and discharge pressure gauges
• Discharge isolation valve
• Low level float switch w/ 50ft cable (Suction Lift)
• 3” foot valve (Suction Lift)
• 2″ stainless steel check valve (Booster)
• 304 stainless steel piping
• 1” priming port
• Threaded NPT inlet and outlet connections
-Booster: 2” inlet & outlet
-Suction Lift: 3” inlet & 2” outlet
