WATERMAX 5000 FOR LANDSCAPE

WaterMax 5000 is a pre-fabricated, self-contained pump station that can be customized to exactly meet your requirements through a broad range of options.

Application: Booster, Suction Lift, Flooded Intake
Flow: Up to 400 GPM
Pressure: Up to 100 PSI
Horsepower: 3-25 HP
Voltage: 208/1phase, 240/1phase, 208/3phase, 240/3 Phase, 480/3 Phase

Features

Standard

VFD pressure regulation with surge free station starting/stopping
Starting Options:
- Pressure drop
- Flow based
- 24 VAC remote start relay
Marine grade aluminum enclosure with lockable lid, forced fan air cooling, and gas spring assisted lid lift
UL 508A listed dead front control panel with service rated disconnect and PLC
Fork pockets and lift holes on base
Alarms:
- Low pressure shutdown
- High pressure shutdown
- VFD fault shutdown
- High pump temperature shutdown
- Motor overload shutdown
- Phase loss (3 phase only) Automatic reset and time stamping of all alarms
Features
- Alarm log history report
Horizontal premium efficient inverter duty rated motor
Durable cast iron pump featuring bronze impeller and mechanical seal
Lightning surge protection
Silent check valve per pump
Station discharge isolation valve
3 step epoxy coat paint on all station piping
Full flow pump bypass piping included on booster and flooded suction models
Priming port and automatic priming assembly for suction lift models
Stainless steel pressure transducer
Flow sensor providing flowrate and totalized system flow
Station inlet/discharge flanged termination

Options

• Advanced Watertronics PLC based microprocessor controls with color touch screen
*WaterVision remote monitoring – ethernet or cellular versions
• 24 volt controller start (up to 2 additional)
• HDPE suction line assembly (floating or vertical) with foot valve
• Electromagnetic flow meter
• Suction & discharge drop pipes with multiple connection options
• Temperature controlled enclosure heater
• Vandal resistant red alarm light
• Internal sound dampening insulation
• Back flow preventer
• Programmable set-point lake level control
• Submersible turbine or vertical mulit-stage pumps
• In-line basket or wye strainer
• Automatic self-cleaning discharge filtration

Differentiators

Resources

WATERMAX 5000 FOR LANDSCAPE

Application: Booster, Suction Lift, Flooded Intake
Flow: Up to 400 GPM
Pressure: Up to 100 PSI
Horsepower: 3-25 HP
Voltage: 208/1phase, 240/1phase, 208/3phase, 240/3 Phase, 480/3 Phase

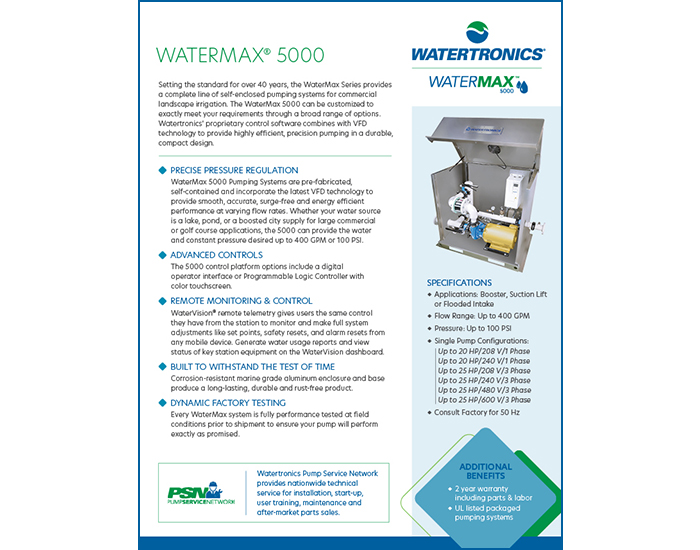

LITERATURE
